✅ Meta Description
Marine grade manual hand winch ideal for marine, utility and recreational use. Available in 600lb to 1800lb capacity, multiple gear ratios. Optional 23ft strap, durable structure for boat & trailer hauling. OEM & wholesale orders welcome.
✅ Product Description
Brief Intro

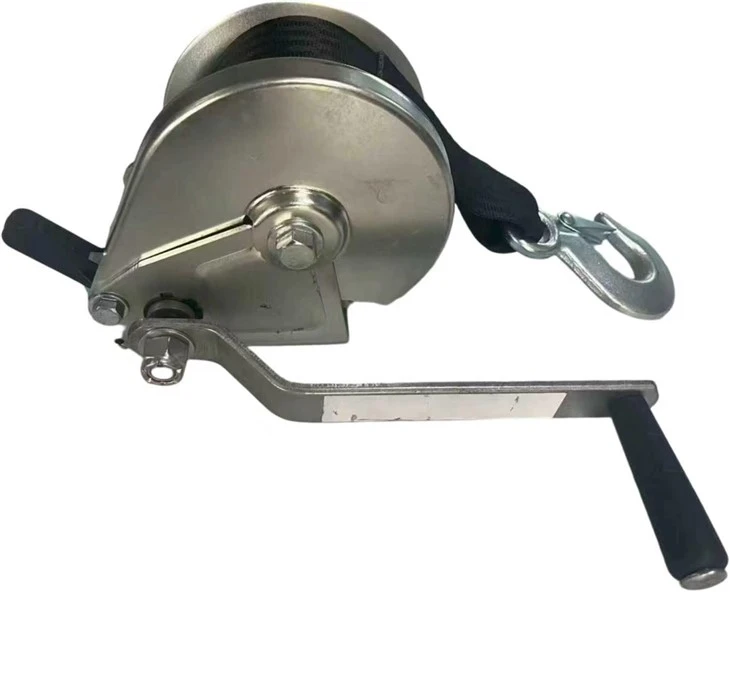

Our marine hand winch is designed for marine, utility, recreational and trailer applications. It is widely used for boat loading and corner stabilizing on cargo and industrial trailers. We offer multiple models with working load from 600 lbs up to 1800 lbs, different gear ratios and optional polyester strap for flexible selection.
Key Features
Multi-scenario use: marine, utility, recreational & industrial trailer
Wide load range from 600lb to 1800lb for different hauling demands
Multiple gear ratios: 3.1:1 / 4.1:1 /4.8:1 for easy cranking
Models available with or without 23' polyester strap
Solid metal construction, stable and long service life
Different handle length options: 7", 8",10.5"
Specifications
表格
| Product Code | Capacity(lbs) | Description | Gear Ration | Max Cable Length | Unit Weight(lbs) |
|---|---|---|---|---|---|
| HWSP-600 | 600 | Hand winch includes 23' strap and 7" handle | 3.1:1 | 4.2mm ×33' | 4.74 |
| HWSP-1000 | 1000 | Hand winch includes 23' strap and 8" handle | 4.1:1 | 4.5mm ×33' | 7.06 |
| HW-1000 | 1000 | Hand winch includes 8" handle | 4.1:1 | 4.5mm ×33' | 6.62 |
| HWSP-1400 | 1400 | Hand winch includes 23' strap and10.5" handle | 4.1:1 | 4.8mm ×33' | 8.71 |
| HW-1400 | 1400 | Hand winch includes10.5" handle | 4.1:1 | 4.8mm ×33' | 8.27 |
| HWSP-1600 | 1600 | Hand winch includes23' strap and10.5" handle | 4.1:1 | 5.0mm ×33' | 8.93 |
| HW-1600 | 1600 | Hand winch includes10.5" handle | 4.1:1 | 5.0mm ×33' | 8.49 |
| HW-1800 | 1800 | Hand winch includes10.5" handle | 4.8:1 | 5.0mm ×4' | 8.6 |
Application
Boat trailer, marine hauling, cargo & industrial trailer corner stabilizing, recreational vehicle use.
Important Note
Strap is included for SP suffix models; HW base models come without strap.
Do not exceed rated working load capacity during operation.
