✅ Meta Description
Heavy-duty single speed brake winch for marine, agriculture, industrial and commercial lifting. Auto brake activates once releasing handle. Premium clear zinc finish, 1000lb to 2500lb load capacity. Wholesale & OEM available.
✅ Product Description
Brief Intro

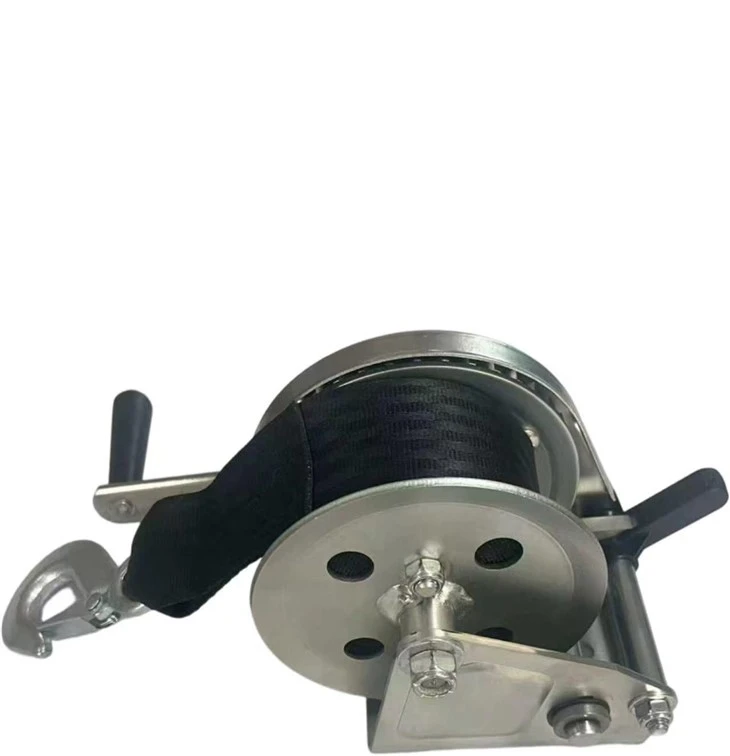

Our brake winch is designed for marine, agricultural, industrial and commercial scenarios that require mechanized lifting. Equipped with automatic brake mechanism, it locks automatically when you release the handle to prevent load backsliding. The premium clear zinc coating provides reliable corrosion resistance.
Key Features
Auto brake mechanism: activates immediately once operator releases the handle, secure load control
Comfortable poly handle grip for fatigue-free operation
Single speed design with premium clear zinc finish for anti-corrosion
3 load options: 1000lb,1500lb,2500lb to meet different lifting demands
Different gear ratios and reel cable capacity for flexible applications
Specifications
表格
| Product Code | Capacity(lbs) | Gear Ratio | Hub Diameter | Handle Length | Reel Capacity(1/4" Cable) | Unit Wt.(lbs) |
|---|---|---|---|---|---|---|
| BW-1000 | 1,000 | 4.1:1 | 2.25" | 11" | 55' | 9.1 |
| BW-1500 | 1,500 | 5.1:1 | 2.5" | 11" | 90' | 12.25 |
| BW-2500 | 2,500 | 13:1 | 3.5" | 11" | 160' | 16.52 |
Application
Marine, agriculture, industrial and commercial lifting & pulling jobs.
Important Note
Do not exceed rated working load. The built-in brake is for load holding, not for emergency stopping.
Hot Tags: brake marine winch, China brake marine winch manufacturers
